Paints for automotive parts and architectural paints
Welcome to Changzhou Wujin Chenguang Metal Coating Co., Ltd.
The products are subdivided into special paints for anti-corrosion of metal parts, special paints for automotive lamps and powder paints systems
TingKH paint is the company's brand of industrial paints, including paints for automotive parts and architectural paints. According to the scope of application, the products are subdivided into special paints for anti-corrosion of metal parts, special paints for automotive lamps and powder paints systems.

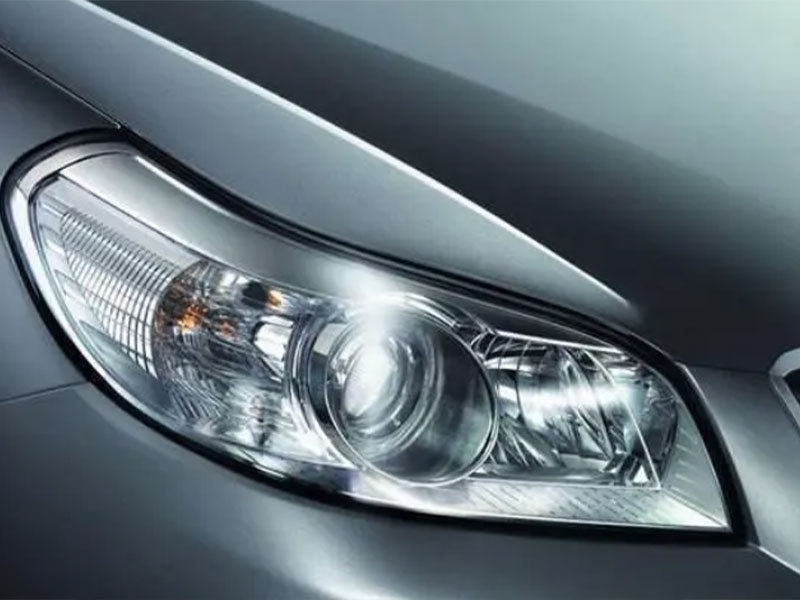

TingKH paints' special coating systems for automotive lamps include light-curing paints, heat-curing paints and dual-curing paints. Suitable for ABS, PMMA, PP, PC, heat-resistant PC, PA, PBT, BMC, PEI, PPS, metal and other materials.

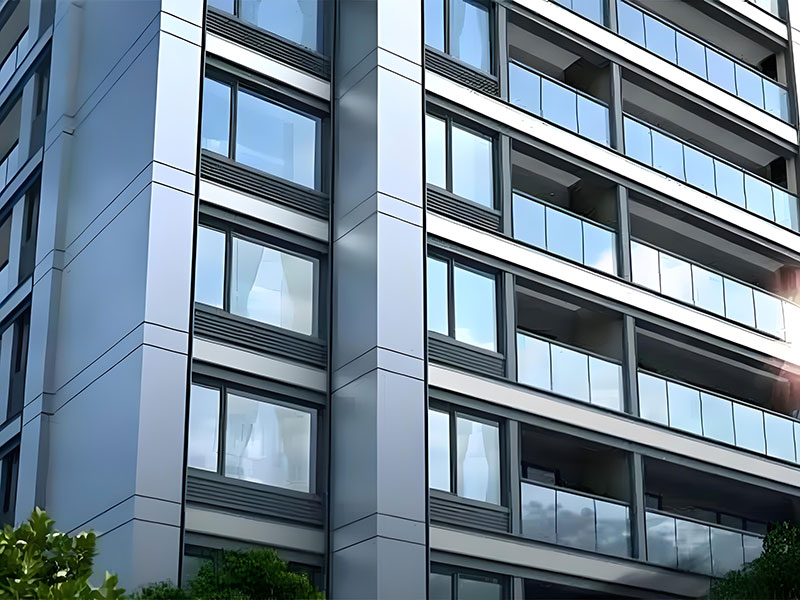

TingKH's powder paint systems include weather-resistant polyester powder paints for construction, ultra-weather-resistant polyester powder paints for industrial use, durable polyester powder paints for industrial use, anti-corrosion epoxy powder paints, insulating powder paints, etc., which are used in automobiles, building materials, general industry and home appliances and furniture industries, and provide long-term anti-fouling, weathering-proof, corrosion-resistant, wear-resistant, and decorative properties. The insulating paint is used in the battery shell of new energy vehicles, and the quality has been recognized by the industry authority.
Product List

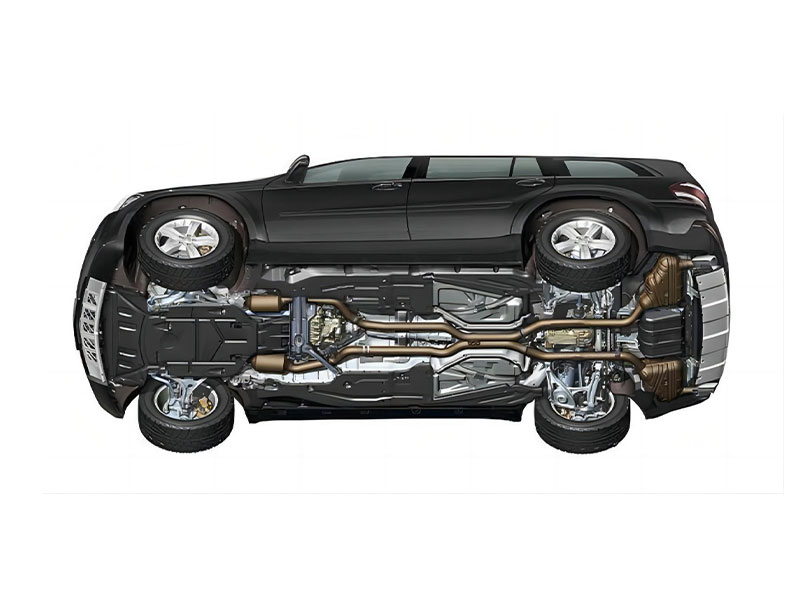

- Special anti-corrosion paints for metal parts
- Special paints for car lights
- Powder paints
| Product name | Epoxy zinc-rich primer (2K) | Epoxy primer (2K) | Iron red epoxy primer | Solvent-based underside all-in-one paint | Water-based epoxy primer (2K) | Low-temperature water-based acrylic polyurethane topcoat (2K) |
| Model | SD1733（2K） | SD1833（2K） | SD1831 | ST6431 | WD1831 | WT5433（2K） |
Scope of application | Steel surfaces in moderately to severely corrosive environments, coating of automotive parts and assemblies with high corrosion protection requirements. | Coating of automotive parts and assemblies with high anti-corrosion requirements on steel surfaces in mildly to moderately corrosive environments. | Mild to moderate corrosive environment, protection of metal parts | Protection of metal parts | Surface protective coating of auto parts | Surface protective coating of auto parts |
| Process conditions | Air spraying, (80±2) ℃/30min | Air or electrostatic spraying, (80±2) ℃/30min | Air or electrostatic spraying, (80±2) ℃/30min | Air or electrostatic spraying, (80±2) ℃/30min | Air or electrostatic spraying, (80±2) ℃/30min | |
| Technical requirements | Resistant to salt spray ≥1000h | Resistant to salt spray ≥504h | Resistant to salt spray ≥120h | Resistant to salt spray 300h Aging resistance ≥500h | Resistant to salt spray ≥504h | Aging resistance 800h |
| Product name | Model | Scope of application | Process conditions | Technical requirements |
| Light-curing coating primer | ABS-3A-3 | UV primer | 600-1000 | Temperature resistance (70℃/2h) |
| PC-6600K | 1500-2000 | Temperature resistance (120℃/2h) | ||
| PC-D6903 | 1000-1500 | Temperature resistance (120℃/2h) | ||
| PBT-B2 | 2500-3500 | Temperature resistance (160℃/2h) | ||
| PBT-507HZ-FG | 2500-3500 | Temperature resistance (160℃/2h) | ||
| PBT-WS | 2500-3500 | Temperature resistance (160℃/2h) | ||
| BMC-TZ | 3500-6000 | Temperature resistance (220℃/2h) | ||
| BMC-A2 | 3500-6000 | Temperature resistance (200℃/2h) | ||
| BMC-DX | 3500-6000 | Temperature resistance (200℃/2h) | ||
| ZT-400 | 1500-2500 | Temperature resistance (200℃/2h) | ||
| SUV-UV-PP | 2000-3000 | Temperature resistance (130℃/2h) | ||
| PEI-500 | 2000-3000 | Temperature resistance (180℃/2h) | ||
| Light-curable coating topcoat | SCI-5000 | Coating Protection (UV) | 800-1200 | Temperature resistance (120℃/2h) |
| Light-curing lampshade topcoat | BC-M1000 | PC hardening | 1500-3000 | Temperature resistance (120℃/2h) |
| BC-M2000 | 2500-3500 | |||
| BC-M3001 | 2500-4000 | |||
| Heat-curing coating primers | 6737UA | Heat-curing primer | / | Temperature resistance (120℃/2h) |
| BMC-100 | / | Temperature resistance (180℃/2h) | ||
| Heat-curing anti-fog paints | SW-2520-70 | Heat-curing anti-fog paints | / | Temperature resistance (120℃/2h) |
| SW-2520-90 | / | |||
| Light-curable anti-fog paints | SW-2600-100 | Light-curable anti-fog paints | 1200-1500 | Temperature resistance (120℃/2h) |
| Water-based Light-curing coating primer | WT-UV-16 | Water-based UV primer | 1500-2500 | Temperature resistance (120℃/2h) |
| WT-UV-17 | 2500-3500 | Temperature resistance (160℃/2h) | ||
| WT-UV-18 | 3500-5000 | Temperature resistance (200℃/2h) |
| Product name | Model | Scope of application | Process conditions | Technical requirements |

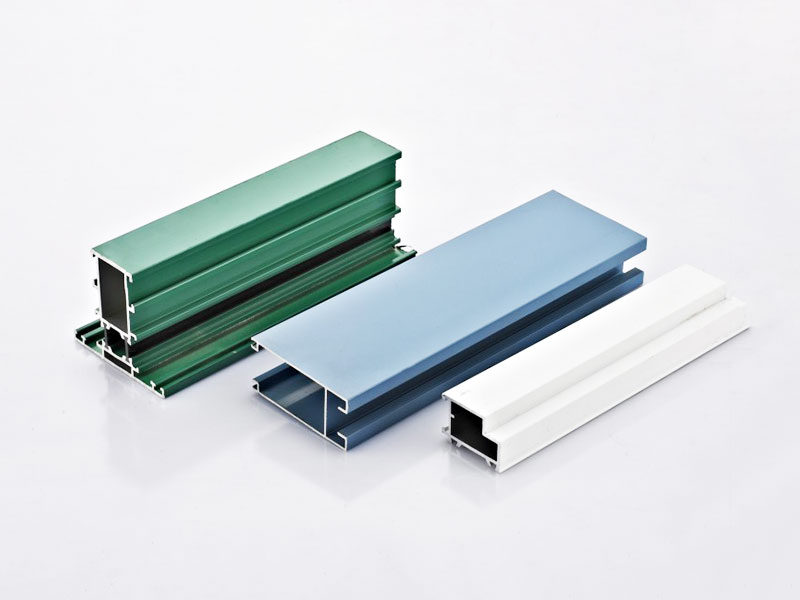

| Weather-resistant polyester powder | PH2211 | Architectural Paints (Exterior & Indoor) | Electrostatic spraying, 180℃/15min | Qualicoat Class 1 AAMA2603 |
| PH1221 | ||||
| PH1321 | ||||
| Super weather-resistant polyester powder | PS1281 | Industrial Paints (Exterior & Indoor) | Electrostatic spraying, 180℃/15min | Qualicoat Class 2 AAMA2604 |
| PS2281 | ||||
| Mixed powder | PG1321 | Home appliance industry | Electrostatic spraying, 200℃/15min | Artificial aging test 800h Salt spray resistance test 240h |

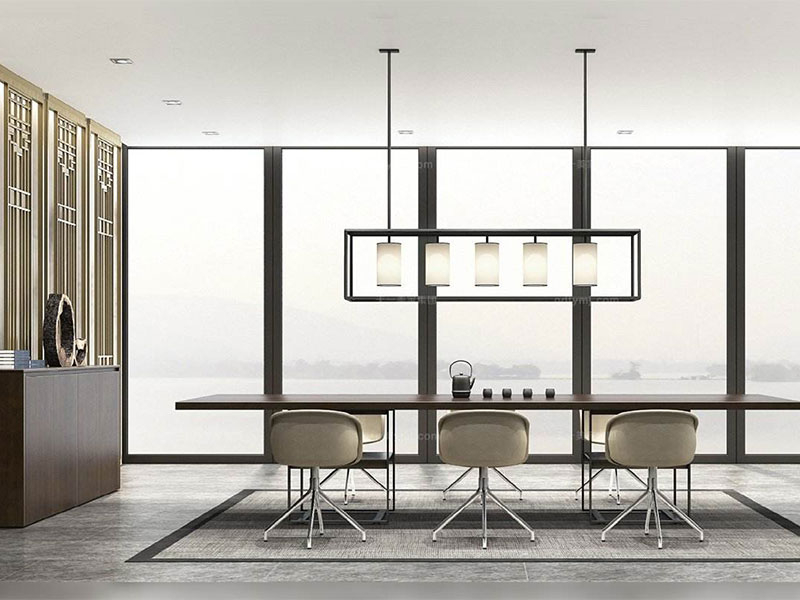

| Epoxy powder | PN1151 | Office furniture (automotive parts and industrial stampings) | Electrostatic spraying, 200℃/15min | Salt spray resistance test 1000h |
| Durable polyester powder | PD1281 | Heavy Equipment Industrial Applications, Agricultural, Construction & Dozer Equipment, Yard Furniture & Fencing (ACE) | Electrostatic spraying, 180℃/15min | Artificial aging test 2000h Exposed to the sun in Hainan for 5 years |

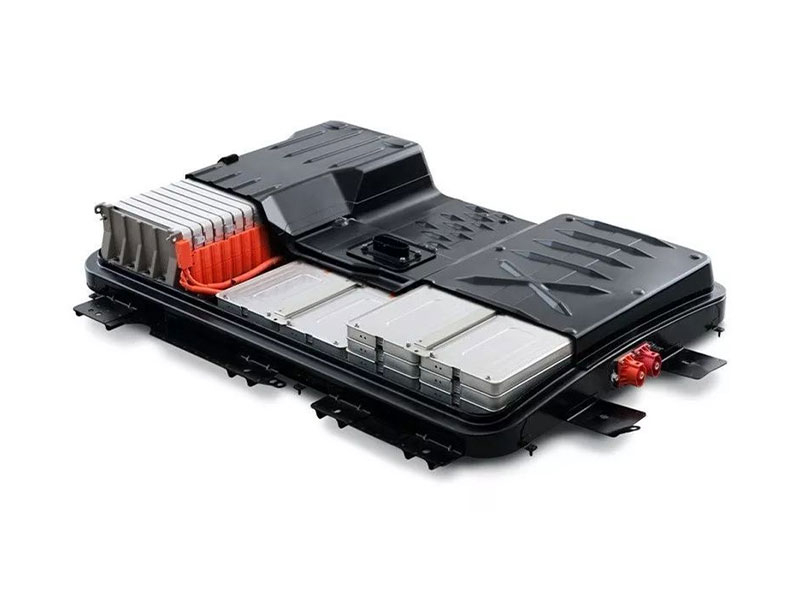

| Insulating powder | PF1181 | New energy vehicle battery system | Electrostatic spraying, 180℃/15min | 85℃，85%Rh 1000h Salt spray resistance test 1000h |

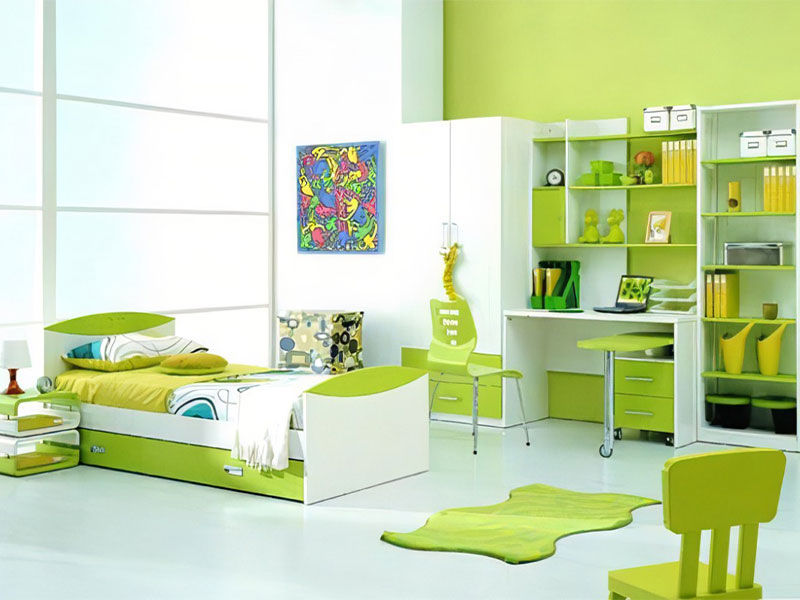

| Fast-curing powder | PQ1281 | Exterior architectural and industrial applications, wood paints | Electrostatic spraying, 160℃/15min | Curing at 160°C/15min |

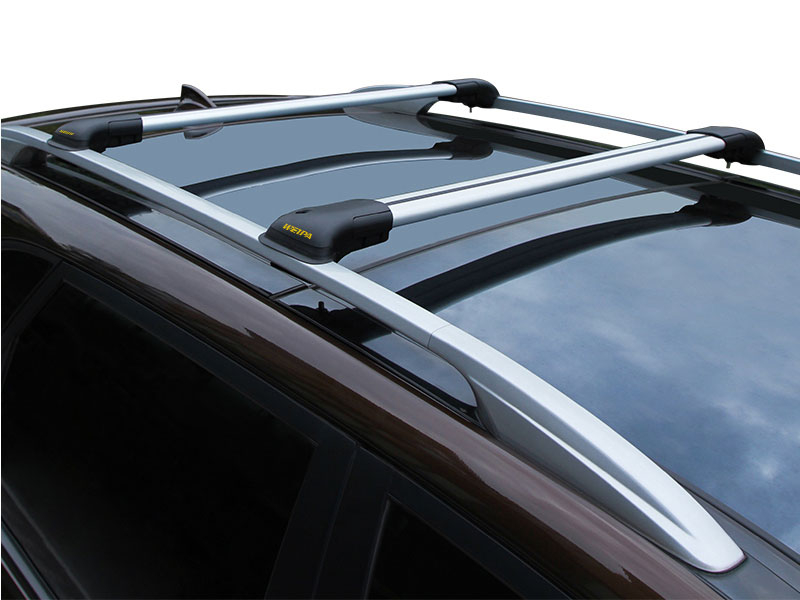

| Beautiful body powder | PA1691 | Automotive paints | Automotive metal exterior parts | Artificial aging test 2000h |
